A|Box3, is an 80 mm Android solution with the unique potential of A-Touch System Software. A 10”, 16:10 touch panel display optimises graphics and functionality. Its compact, space saving design makes A|box 3 a winning all-in-one solution.A|BOX 3
A|Box3, is an 80 mm Android solution with the unique potential of A-Touch System Software. A 10”, 16:10 touch panel display optimises graphics and functionality. Its compact, space saving design makes A|box 3 a winning all-in-one solution.
Technical specifications
DIMENSIONS
L285 x D296x H155 mm – 1450 g
Display

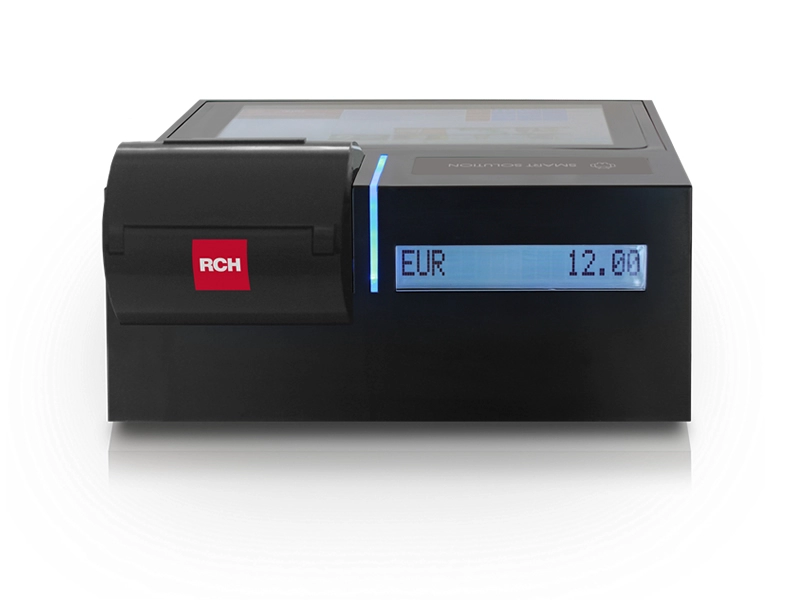

Backlight LCD, 1 line of 16 alphanumeric characters, 15 mm (Customer side)
Video Keyboard

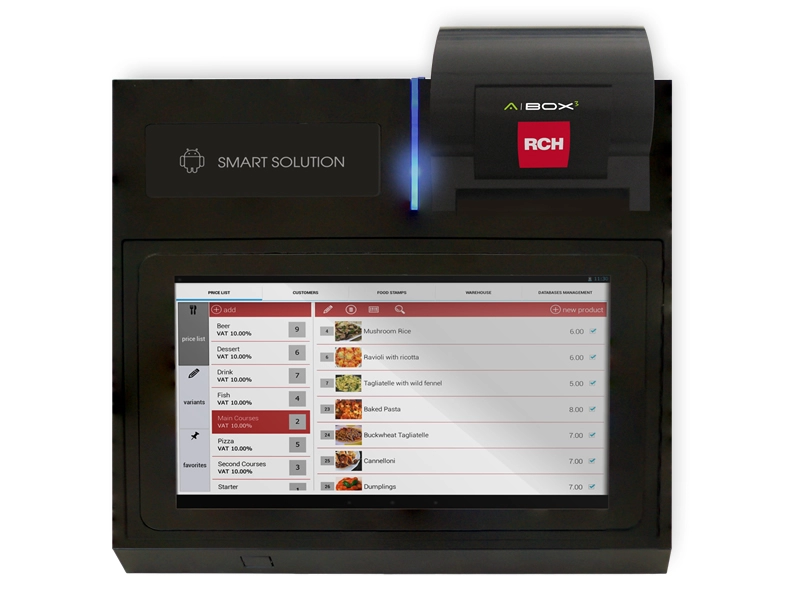

10.1” TFT colour, 16:10 format, 1280×800 resolution, high brightness with Capacitive Touch.
Printer
Thermal type delivering high print quality, easy paper-loading system
Printing speed
200 mm/sec – 8 dots/mm
Paper roll

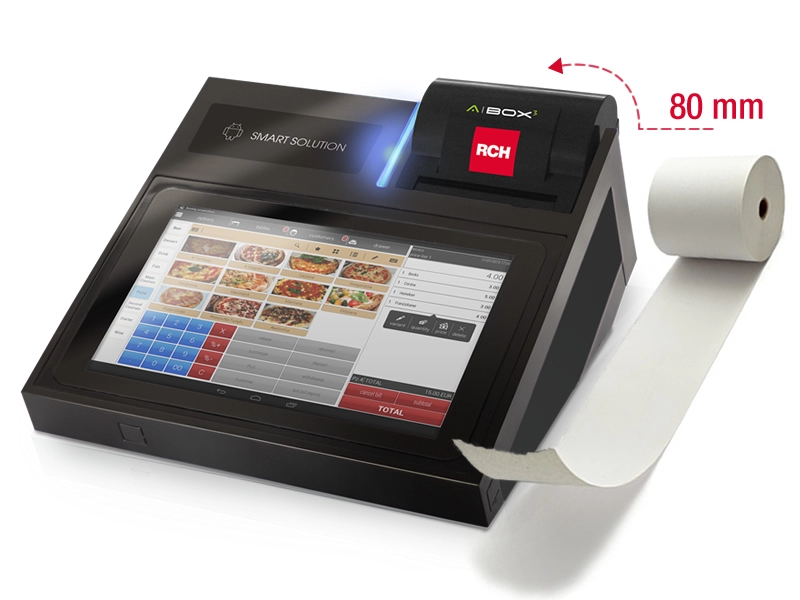

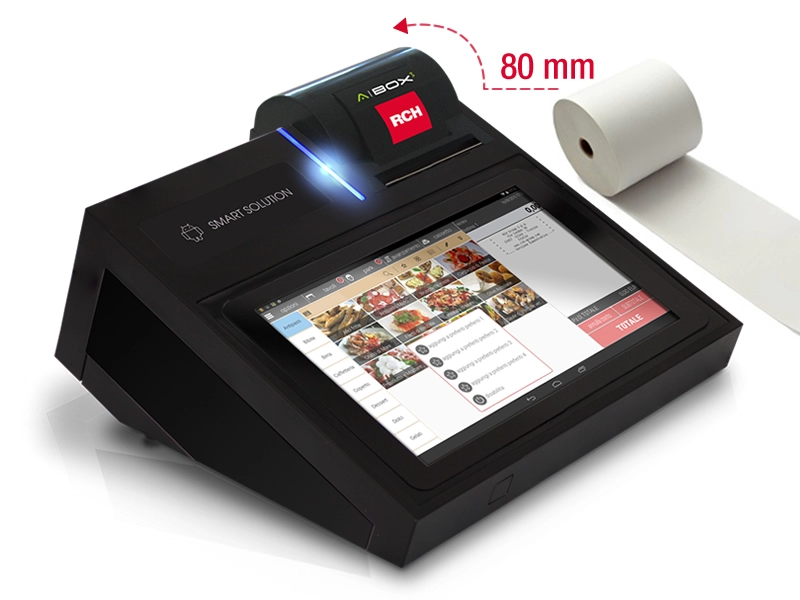

Width 80 mm, diameter 80 mm
Printing system
Easy loading with automatic cutter
Interfaces
- 1x RJ11 adapter for cash drawer connection, 24V
- 1 x RS 232 serial port with RJ45 connector
- 2 x USB for external peripherals
- 1 x SD Card
- 1 x Ethernet 10/100/1000
- 1 x micro USB
CPU
ARM Cortex A9 Quad Core @1GHz
Operating system
Android 5.0.2 or higher
Storage memory
8GB/16GB eMMC
RAM memory
2GB
Audio
Internal 2 x 2W loudspeakers
Options
- Integrated iButton Dallas
- Integrated NFC reader
- External MSR
- Wi-Fi/Bluetooth USB
